المنتجات Low Current Systems NVR

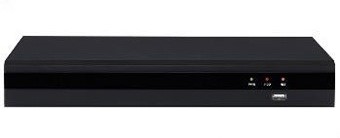

ZTGN-9CH-8POE

Max. HDD Bay 2 x SATA HDD Operating System Embedded Linux IP Camera Channel 8 Ch + 1 Ch(additional) IP Camera Protocol ONVIF IP Camera No. of PoE 8 Ch IP Camera PoE Type 100Mbps, 802.3at Video-In IP Camera (Up to 4K UHD) Video-Out Monitor Composite & VGA & HDMI Video-Out Resolution HDMI: 800x600, 1024x768, 1280x1024, 1920x1080, 3840×2160 (4K) (Selectable) Recording Speed CIF ~ 1080P 270fps Recording Speed 1920P 270fps Recording Speed 2160P 270fps Recording Resolution 40Mbps Network bandwidth (Max) Continuous, Scheduled, Sensor-Activated & Motion Detection Recording Recording Modes Pre & Post Alarm Recording, Emergency Recording, Quick Backup Playback & Search Speed x1, x2, x4, x8, x16, x32, x64, x99 Playback & Search Ch & Resolution 1 & 4 : Main Stream, 9 & 16 : Sub Stream Playback & Search Function Intelli-Search by Time Bar, Calendar (Date & Time) and Event Search Audio Input / Output 1 Ch / 1 Ch Alarm Input / Relay Output 4 Ch / 1 Ch P/T/Z Control ONVIF LAN Gigabit Ethernet (RJ45) - Fixed IP, DHCP & DDNS Network Function 1) Dual-Stream (Local Recording & Network Transmission) 2) Dual-Recording (Live Display / Playback) 3) Live Monitoring, Remote Playback and File Backup (Triplex-on-Remote) 4) Time Synchronization by NTP Server ("pool.ntp.org") 5) Remote & E-Mail Notification, Remote System Reboot by IE, Remote PTZ Control 6) P2P Service (No Port forwarding required) Remote Management Software CMS & MMS (MV3000) Remote Management Web (IE) Live Monitoring, Playback & System Configuration Backup Device Local Backup by USB ODD, Network Backup by CMS, File Upload to FTP Server System Recovery after Power Failure Auto-Reboot and Journaling File System Advanced Functions 1) Firmware Upgrade by USB & CMS over Network 2) Import & Export of Setting Value, Water-Mark, AVI File Backup 3) Quick Setup to designate Recording Period 4) HDD SMART Info (Model, Capacity, Bad Sector, Temperature, Used Period) 5) Warning Alarm for System Over-Temperature 6) Help Message for easy setup & Multi-Language support 7) Digital Zoom for both Live & VOD mode 8) Smart Search POS Text-in Based (USB to Serial support, TCP/IP Network) System Operation IR Remote Controller, USB Mouse, Keyboard (Option) Power 110~240V A/C (180W) Operating Temperature and Humidity 5~40 ℃ / 20~90% RH Dimension (WxDxH) 385 × 315 × 52 mm (1U) Certification CE & FCC & KCC & WEEE, RoHS

رمز المنتج : ZTGN-9CH-8POE

تفاصيل المنتج

المتوفر بالمقاسات :

اطلب الآن

منتجات مماثلة

منتجات مماثلة مقترحة

ztgn-9ch4poe

ZTGN-9CH4POE

Operating System Embedded Linux® System Channel 9 Channel No. of PoE 4 Ch Max supported resolution IP camera max ( 8MP) Communication Protocol ONVIF® PoE Type 100Mbps, 802.3af Display Speed 270fps Screen Mode 1, 4 & 9 Video-Out Monitor True HD and VGA Resolution True HD output: 800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080 Recording Speed Up to 270fps up to 8MP resolution Max. throughput 80 Mbps Max. HDD bay 1 x SATA HDD Recording resolution Dual-stream Recording modes Continuous, C+M, C+S, scheduled, sensor & motion detection recording Pre-alarm recording, emergency recording, quick backup Playback & search Speed x1, x2, x4, x8, x16, x32, x99 Function Intelligent-search by time bar, calendar (date & time) and event search Audio Output 1 Ch Alarm Input/ Relay Output 4 Ch/ 1 Ch PTZ Control RS-485, ONVIF Transaction Verification TCP and USB-serial interface LAN 1x Gigabit ethernet (RJ45) – fixed IP, DHCP & DDNS Remote Software CMS & MMS (MV3000 ) Backup Device Local backup by USB, network backup by CMS System recovery after power failure Auto-reboot and journaling file system Other Function Firmware Upgrade FTP, USB Back-up Remote, USB Special features Local PoE switch Health check Real-time system, network and PoE status monitoring System operation IR remote controller (optional), USB mouse, PTZ control by keyboard (optional) Power requirements 48V DC Power consumption IEEE 802.3 at : Auto Power Distribution to each PoE Port(Max. 30W/PoE Port Operating temperature and humidity 41~104 °F (5~40 °C) / 20~90% RH Dimension (WxDxH) 10.39 x 9.65 x 1.73 Inch (264 x 245 x 44 mm) Certification CE & FCC & KCC & WEEE, RoHS Warranty 5 year limited

اطلب الآن عرض التفاصيل

ztgn-16ch8poe

ZTGN-16CH8POE

Operating System Embedded Linux System Channel 16 channel No. of PoE 8 Ch Communication Protocol ONVIF® PoE Type 100Mbps, 802.3af Display Speed 480fps Screen Mode 1, 4, 9 & 16 Max. HDD Bay 2 x SATA HDD Video-In IP Camera (Max. 8MP) Video-Out Monitor True HD and VGA Resolution True HD Output: 800x600, 1024x768, 1280x1024, 1920x1080 (Selectable) Recording Speed CIF 480fps D1 480fps 1.3MP 480fps 2.1MP 480fps 5MP 8MP 480fps 480fps Recording Resolution Dual Stream Recording Modes Continuous, C+M, C+S, Scheduled, Sensor & Motion Detection Recording Pre Alarm Recording, Emergency Recording, Quick Backup Playback & Search Speed x1, x2, x4, x8, x16, x32,x99 Function Intelli-Search by Time Bar, Calendar (Date & Time) and Event Search Audio Output 1 Ch Alarm Input / Relay Output 4 Ch / 1 Ch PTZ Control RS-485, ONVIF Transaction Verification TCP and USB-Serial Interface LAN 1xGigabit Ethernet (RJ45) – Fixed IP, DHCP & DDNS Remote Software CMS & MMS (MV3000 ) Backup Device Local Backup by USB, Network Backup by CMS System Recovery after Power Failure Auto-Reboot and Journaling File System Other Function Firmware Upgrade FTP, USB Back Up USB Special Features Local PoE Switch Health check Real-Time System, Network and PoE Status Monitoring System Operation IR Remote Controller (Optional), USB Mouse, PTZ Control by Keyboard (Option) Power Requirements 48V DC Power Consumption •IEEE 802.3 at : Auto Power Distribution to each PoE Port(Max. 30W/PoE Port) Operating Temperature and Humidity 41~104 °F (5~40 °C) / 20~90% RH Dimension (WxDxH) 14.21 x 14.96 x 2.6 Inch (361 x 380 x 66 mm) Certification CE & FCC & KCC & WEEE, RoHS

اطلب الآن عرض التفاصيل

ztgn-16poe

ZTGN-16POE

Operating system Embedded Linux® System Channel 16 channel No. of PoE 16 ch Communication protocol ONVIF® PoE type 1Gbps, 802.3af Display Speed 480fps Screen mode 1, 4, 9 & 16 Max. HDD bay 4 x SATA HDD Video-in IP camera (Up to 8MP ) Video-Out Monitor True HD, VGA and composite Resolution True HD output: 800x600, 1024x768, 1280x1024, 1920x1080 Recording speed FPS 360fps Resolution CIF, D1, 1.3MP, 2.1MP, 5MP , 8MP Recording resolution Dual stream Recording modes Continuous, C+M, C+S, scheduled, sensor & motion detection recording Pre alarm recording, emergency recording, quick backup Playback & search Speed x1, x2, x4, x8, x16, x32, x64, x99 Function Intelli-search by time bar, calendar (date & time) and event search Audio output 1 Ch Alarm input / relay output 4 Ch / 1 Ch PTZ control RS-485, ONVIF Transaction verification TCP and USB-serial interface LAN 1xgigabit Ethernet (RJ45) – fixed IP, DHCP & DDNS Remote Software Pivot Pro™, web client, mobile client for Android® & Apple® smart phones and tablets and Apple TV Backup Device Local backup by USB, network backup by CMS System Recovery after Power Failure Auto-reboot and journaling file system Other function Firmware upgrade FTP, USB Back up USB Special features Local PoE switch Health check Real-time system, network and PoE status monitoring System operation IR remote controller (optional), USB mouse, PTZ control by Keyboard (keyboard not included) Power requirements 110~240V A/C Power consumption IEEE 802.3 at : Auto Power Distribution to each PoE Port(Max. 30W/PoE Port) Operating temperature and humidity 41~104 °F (5~40 °C) / 20~90% RH Dimension (WxDxH) 16.53 x 15.75 x 3.46 Inch (420 x 400 x 88 mm) Certification CE, FCC, KCC, WEEE, RoHS

اطلب الآن عرض التفاصيل
