Number of Effective Pixel 1920 x 1080 Pixels (Full HD) Min.Illumination 0Lux IR ON Lens 2.7~12mm Motorized Lens with IRIS   ICR for Day & Night Yes   IR LED SUPER IR : 6EA Shutter Auto / LEVEL(1/30~1/30000)Adjustment AWB Auto WDR 120 DB 3DNR On/Off Defog On/Off Video Codec H.264/H.265//JPEG Frame & Resolution Max. 30 fps at 1920 x 1080 Multi Stream Main & Sub Bitrate Control CBR / VBR Motion Detection Yes Privacy Mask Yes Alarm / Event Intelligent Video Motion Detection   Alarm Event Video file upload(FTP), Still Image(Email)

Video Number of Effective Pixel 1920 x 1080 Pixels(Full HD) Min.Illumination Color : 0.5 Lux - BW   : 0.1 Lux Operation ICR for Day & Night Yes OSD Through Web Day & Night Auto / Color / BW / EXT Back Light Compensation On / Off 3DNR Auto LENS 2.8mm Megapixel Lens (ICR) Motion Detection Yes Privacy Mask 4 Blocks (On / Off) Digital Zoom x16 (On / Off) Shutter Speed Auto AGC On(0 ~ 255 Steps) AWB Auto / Manual / ATW Image Effiect Mirror , Flip Defog On /Off

Camera Image Sensor Omnivision 1/3" CMOS Sensor Number of Effective Pixel 2592 x 1520 Pixels Min.Illumination 0Lux IR ON Lens 2.8~12mm Varifocal Lens with IRIS   ICR for Day & Night Yes   IR LED 30 PCS up to 30 M IR Distance Shutter Auto / LEVEL(1/25~1/10000)Adjustment AWB Auto WDR Digital WDR On/Off 3DNR On/Off Defog On/Off Video Codec H.264/H.265//JPEG Frame & Resolution Max. 30 fps at 2592 x 1520 Multi Stream Main & Sub Bitrate Control CBR / VBR Motion Detection Yes Privacy Mask Yes Alarm / Event Intelligent Video Motion Detection   Alarm Event Video file upload(FTP), Still Image(Email)

Model ZTGIP-DTAF2M IMAGE Lens Motorized Varifocal 2.8~12mm, F1.6 Angle of View 97~31°(H) Image Sensor Type 1/3” CMOS Sensor Pixels 2688(H)x1520(V) Min. Illumination Color : 0.1Lux@F1.6 / BW : 0Lux@F1.6(IR LED On) Scanning Mode Progressive Scan Wide Dynamic Range True WDR (120dB) Day and Night Mode True D/N(Auto, Day, Night) Noise Reduction 2DNR, 3DNR Digital Zoom Yes(ROI) Exposure Control Auto White Balance Control Auto, Incandescent, Fluorescent, Outdoor, Manual Metering Mode Spot(BLC), Center, Average, Left, Right Image E ect Flip, Mirror, Defog Flicker Free Mode 50Hz, 60Hz Shutter Speed Auto(1/10,000~1sec), Manual IR Illuminator Quantity 28 IR LEDs Angle 80°(H) Distance Up to 25m Motorized Lens Control Smart Focus, Manual VIDEO/AUDIO Compression H.264/H.265(Baseline, Main, High Pro le), MJPEG Bitrate Control CBR, CVBR Resolution 2592x1520, 2048x1520, 1920x1080, 1280x1024, 1280x720/960, 1024x768, 704x480/576, 640x480, 320x240 Frame Rate Max. 25/30fps Streaming Quad Stream : H.264/H.265x3, MJPEGx1 Composite Out Yes Audio Compression G.711 Audio Streaming 2 Way SYSTEM Video Contents Analysis Tampering, iVMD, Intrusion Detector Motion Detection Area 16 Programmable Area(Include Area 8, Exclude Area 8) Privacy Mask Zone 8 Programmable Zone FTP Uploading MJPEG Event Noti cation E-mail, FTP, Noti cation Server, XML Noti cation, Audio Alert Audio Alert User De ned 3 Audio File Login Authority Administrator, Operator, Guest Event Bu ering FTP Pre : 30sec, Post : 30sec SD Record Pre : 10sec, Post : 60sec Manual Trigger 4 Programmable Trigger Security Multi User Authority, IP Filtering, HTTPS, SSL Network Time Sync NTP Server, Synchronized Computer, Manual Software Reset Restart, Reset, Factory Default Hardware Factory Reset Yes Auto Recovery Backup, Restore Remote Upgrade Web Browsing(IE, Chrome, Safari, Firefox), SmartManager SD Recording Mode Event, Continuous

Camera Image Sensor Sony 1/2.8" STARVIS CMOS Sensor Number of Effective Pixel 1920 x 1080 Pixels (Full HD) Min.Illumination 0Lux IR ON Lens 2.7~12mm Motorized Lens with IRIS ICR for Day & Night Yes IR LED 30 PCS Up To 30M IR Shutter 'Auto /LEVEL(1/30~1/30000)Adjustment AWB Auto WDR '120 DB 3DNR On/Off Defog On/Off Video Codec H.264/H.265//JPEG Frame & Resolution Max. 30 fps at 1920 x 1080 Multi Stream Main & Sub & Third Stream Bitrate Control CBR / VBR Motion Detection Yes Privacy Mask Yes Alarm / Event Intelligent Video Motion Detection Alarm Event Video file upload (FTP), Still Image (Email) Network LAN Interface RJ-45 (10/100 Base-T) Connection Mode Static IP / DHCP / DDNS Protocol IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, SMTP, FTP, DHCP, UPnPP, NTP, DNS, DynDNS, Onvif Onvif Ver. v2.5 Security 'User ID & Password protection, IP address filtering , User Access Log Streaming method 'Standard RTSP streaming HTTP streaming Upgrade & Reset Yes

Video Number of Effective Pixel 1920 x 1080 Pixels(Full HD) Min.Illumination Color : 0.5 Lux BW   : 0.1 Lux Operation ICR for Day & Night Yes OSD Through Web WDR 120 DB   Day & Night Auto / Color / BW / EXT Back Light Compensation On / Off 3DNR Auto LENS 2.8mm Megapixel Lens (ICR) Motion Detection Yes Privacy Mask 4 Blocks (On / Off) Digital Zoom x16 (On / Off) IR Led Up to 25M IR Shutter Speed Auto AGC On(0 ~ 255 Steps) AWB Auto / Manual / ATW Image Effiect Mirror , Flip Defog On /Off Network   Ethernet RJ-45 (10/100 Base-T)   Connection Mode Fixed IP, DHCP & DDNS Video compression H.264/JPEG / H.265   Dual-Stream Main Stream(1080p) & Sub-Stream(D1) Bitrate Control CBR/VBR, Network Bandwidth Control   Protocol TCP/IP, HTTP, RTP/RTSP, UDP, DHCP, FTP, SMTP, NTP, ARP, ICMP, DDNS, ONViF   Security WS-Security, RTSP Access Control Max. User Access up to 16 Onvif Compliance Yes Remote Monitoring All Kinds of Web Browser (I/E, Safari, Chrome, Firefox) CMS & Mobile Viewer (iPhone & Android)

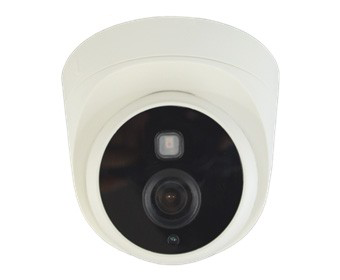

Camera Image Sensor Sony 1/2.8"  Exmor CMOS Sensor Number of Effective Pixel 1920 x 1080 Pixels (Full HD) Min.Illumination 0Lux IR ON Lens 3.6mm Fixed Lens   ICR for Day & Night Yes   IR LED 2 PCS Shutter Auto / LEVEL (1/30~1/30000) Adjustment AWB Auto WDR WDR On/Off (120dB) 3DNR On/Off Defog On/Off Video Codec H.264/H.265//JPEG Frame & Resolution Max. 30 fps at 1920 x 1080 Multi Stream Main & Sub Bitrate Control CBR / VBR Motion Detection Yes Privacy Mask Yes Alarm / Event Intelligent Video Motion Detection   Alarm Event Video file upload (FTP), Still Image (Email) Flame Sensor Area max 90 degrees Distance 35 meters Initialization time 70 sec

Model ZTIPD-EG5MT Camera Image Sensor 1 / 2.8" CMOS Image Size 1920 × 1080 Electronic Shutter 1 s ~ 1 / 100000 s Iris Type Fixed Iris Min. Illumination 0.005 lux@F1.6,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR Lens 2.8 mm@F1.6, horizontal FoV: 108°; vertical FoV: 75.3°; diagonal FoV:115.2° 3.6 mm@F1.6, horizontal FoV: 89°; vertical FoV: 57.8°; diagonal FoV:96.8° Focus Fixed Lens Mount M12 Day& Night ICR Wide Dynamic Range 120dB BLC Yes HLC Yes Defog Yes Digital NR 3D DNR : °~ °, : °~ °, : °~ ° Angle Adjustment Pan 0 355 Tilt 0 67 Rotation 0 355 Image Video Compression Main stream: Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG H.264 Compression Standard Baseline Profile/Main Profile/High Profile Resolution 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 Main Stream 60Hz:1080P/720P(1 ~ 30fps ); 50Hz:1080P / 720P( 1 ~ 25fps ) Sub Stream 60Hz:720P/D1/CIF/480×240 (1~30fps); 50Hz:720P/D1/CIF/480×240 (1~25fps) Third Stream 60Hz:D1/CIF /480×240 (1~30fps); 50Hz:D1/CIF/480×240 (1~25fps) Bit Rate 64 Kbps ~ 6 Mbps Bit Rate Type VBR / CBR Audio Compression G711A / U Image Settings ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser ROI Each ROI to be configured separately Interfaces Network RJ 45 Video Output No Audio 1CH audio input; Built-in MIC × 1 Storage Built-in micro SD card slot; up to 256GB Reset Yes Alarm 1CH alarm input; 1CH alarm output

Model Specifications ZTIPD-EG5MT Camera Image Sensor 1 / 2.7 "CMOS Image Size 2592 × 1944 Electronic Shutter 1 / 30 s ~ 1 / 100000 s Iris Type Fixed Iris Min. Illumination 0.009lux@F1.6,AGC ON; 0 lux with IR 0.006 lux@F1.2,AGC ON; 0 lux with IR Lens 2.8 mm@F1.6, horizontal FoV: 98.5°; vertical FoV: 82.1°; diagonal FoV:110.9° 3.6 mm@F1.6, horizontal FoV: 81.4°; vertical FoV: 65.7°; diagonal FoV:94.2° Focus Fixed Lens Mount M12 Day & Night ICR Wide Dynamic Range 120dB BLC Yes HLC Yes Defog Yes Digital NR 3D DNR Angle Adjustment Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° Image Video Compression Main stream: H.265S / H.265+ / H.265 / H.264S / H.264+ / H.264 / MJPEG Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG H.264 Compression Standard Baseline Profile/Main Profile/High Profile Resolution 5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304× 1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240 Main Stream 5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) Sub Stream 720P/D1/CIF/480×240( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) Third Stream D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) Bit Rate 64 Kbps ~ 8 Mbps Bit Rate Type VBR / CBR Audio Compression G711A / U Image Settings ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser ROI Each ROI to be configured separately Interfaces Network RJ45 Video Output No Audio 1CH audio input; 1 CH built-in MIC Storage Built-in micro SD card slot; up to 256GB Reset Yes Alarm No

Model ZTIPD-EG8M-30F-AF Camera Image Sensor 1 / 1.8 "CMOS Image Size 3840×2160 Electronic Shutter 1 / 25 s ~ 1 / 100000 s Iris Type DC Iris Min. Illumination 0.01 lux @F1.5, AGC ON; 0 lux with IR 0.008 lux @ F1.2, AGC ON; 0 lux with IR Lens 2.8 mm~12mm@F1.5, motorized lens; Field of View Horizontal : 96°~45.6°;Vertical:64°~26.6°;Diagonal:103.8°~51.5° Lens Mount Φ14 Day & Night ICR Wide Dynamic Range 120dB BLC Yes HLC Yes Defog Yes Digital NR 3D DNR Angle Adjustment Pan: 0°~345°; Tilt:0°~77°; Rotation: 0°~345° Image Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG H.264 Compression Standard Baseline Profile/Main Profile/High Profile Resolution 8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944), 4MP( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 Main Stream 60Hz : 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P(1~30fps) 50Hz : 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P(1~25fps) HFR Mode: 60Hz:1080P/720P(1~60fps); 50Hz:1080P/720P(1~50fps) Sub Stream 60Hz : 1080P/ 720P/D1/480 × 240 (1~30fps); 50Hz: 1080P/ 720P/D1/480 × 240 (1~25fps) Third Stream 60Hz : 720P/D1/CIF/480 × 240 (1~30fps); 50Hz: 720P/D1/CIF/480 × 240(1~25fps) Bit Rate 64 Kbps ~ 12 Mbps Bit Rate Type VBR / CBR Audio Compression G711A / U Image Settings ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser ROI Each ROI to be configured separately Intelligent Analytics (Smart Events) Perimeter Protection Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) Target Counting Line crossing human/motor vehicle/non-motor vehicle counting Exception Detection Scene change, video blur and video color cast detection Face Detection Face detection and face capture General Intelligence Crowd density detection, heat map, object abandoned/missing detection*
