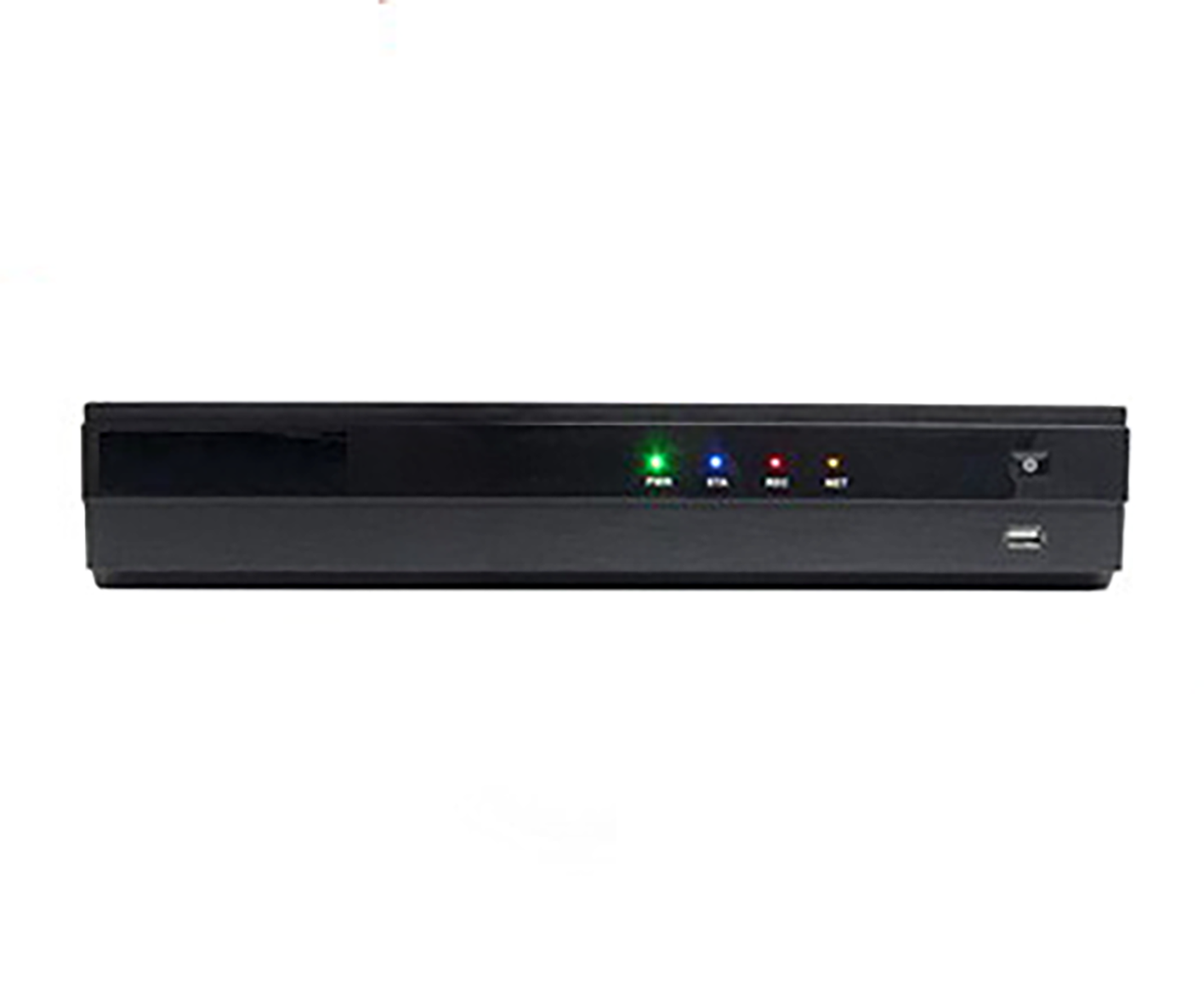

Operating System Embedded Linux® System Channel 9 Channel No. of PoE 4 Ch Max supported resolution IP camera max ( 8MP) Communication Protocol ONVIF® PoE Type 100Mbps, 802.3af Display Speed 270fps Screen Mode 1, 4 & 9 Video-Out Monitor True HD and VGA Resolution True HD output: 800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080 Recording Speed Up to 270fps up to 8MP resolution Max. throughput 80 Mbps Max. HDD bay 1 x SATA HDD Recording resolution Dual-stream Recording modes Continuous, C+M, C+S, scheduled, sensor & motion detection recording Pre-alarm recording, emergency recording, quick backup Playback & search Speed x1, x2, x4, x8, x16, x32, x99 Function Intelligent-search by time bar, calendar (date & time) and event search Audio Output 1 Ch Alarm Input/ Relay Output 4 Ch/ 1 Ch PTZ Control RS-485, ONVIF Transaction Verification TCP and USB-serial interface LAN 1x Gigabit ethernet (RJ45) – fixed IP, DHCP & DDNS Remote Software CMS & MMS (MV3000 ) Backup Device Local backup by USB, network backup by CMS System recovery after power failure Auto-reboot and journaling file system Other Function Firmware Upgrade FTP, USB Back-up Remote, USB Special features Local PoE switch Health check Real-time system, network and PoE status monitoring System operation IR remote controller (optional), USB mouse, PTZ control by keyboard (optional) Power requirements 48V DC Power consumption IEEE 802.3 at : Auto Power Distribution to each PoE Port(Max. 30W/PoE Port Operating temperature and humidity 41~104 °F (5~40 °C) / 20~90% RH Dimension (WxDxH) 10.39 x 9.65 x 1.73 Inch (264 x 245 x 44 mm) Certification CE & FCC & KCC & WEEE, RoHS Warranty 5 year limited

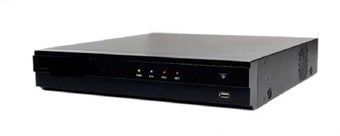

Operating System Embedded Linux System Channel 16 channel No. of PoE 8 Ch Communication Protocol ONVIF® PoE Type 100Mbps, 802.3af Display Speed 480fps Screen Mode 1, 4, 9 & 16 Max. HDD Bay 2 x SATA HDD Video-In IP Camera (Max. 8MP) Video-Out Monitor True HD and VGA Resolution True HD Output: 800x600, 1024x768, 1280x1024, 1920x1080 (Selectable) Recording Speed CIF 480fps D1 480fps 1.3MP 480fps 2.1MP 480fps 5MP 8MP 480fps 480fps Recording Resolution Dual Stream Recording Modes Continuous, C+M, C+S, Scheduled, Sensor & Motion Detection Recording Pre Alarm Recording, Emergency Recording, Quick Backup Playback & Search Speed x1, x2, x4, x8, x16, x32,x99 Function Intelli-Search by Time Bar, Calendar (Date & Time) and Event Search Audio Output 1 Ch Alarm Input / Relay Output 4 Ch / 1 Ch PTZ Control RS-485, ONVIF Transaction Verification TCP and USB-Serial Interface LAN 1xGigabit Ethernet (RJ45) – Fixed IP, DHCP & DDNS Remote Software CMS & MMS (MV3000 ) Backup Device Local Backup by USB, Network Backup by CMS System Recovery after Power Failure Auto-Reboot and Journaling File System Other Function Firmware Upgrade FTP, USB Back Up USB Special Features Local PoE Switch Health check Real-Time System, Network and PoE Status Monitoring System Operation IR Remote Controller (Optional), USB Mouse, PTZ Control by Keyboard (Option) Power Requirements 48V DC Power Consumption •IEEE 802.3 at : Auto Power Distribution to each PoE Port(Max. 30W/PoE Port) Operating Temperature and Humidity 41~104 °F (5~40 °C) / 20~90% RH Dimension (WxDxH) 14.21 x 14.96 x 2.6 Inch (361 x 380 x 66 mm) Certification CE & FCC & KCC & WEEE, RoHS

Operating system Embedded Linux® System Channel 16 channel No. of PoE 16 ch Communication protocol ONVIF® PoE type 1Gbps, 802.3af Display Speed 480fps Screen mode 1, 4, 9 & 16 Max. HDD bay 4 x SATA HDD Video-in IP camera (Up to 8MP ) Video-Out Monitor True HD, VGA and composite Resolution True HD output: 800x600, 1024x768, 1280x1024, 1920x1080 Recording speed FPS 360fps Resolution CIF, D1, 1.3MP, 2.1MP, 5MP , 8MP Recording resolution Dual stream Recording modes Continuous, C+M, C+S, scheduled, sensor & motion detection recording Pre alarm recording, emergency recording, quick backup Playback & search Speed x1, x2, x4, x8, x16, x32, x64, x99 Function Intelli-search by time bar, calendar (date & time) and event search Audio output 1 Ch Alarm input / relay output 4 Ch / 1 Ch PTZ control RS-485, ONVIF Transaction verification TCP and USB-serial interface LAN 1xgigabit Ethernet (RJ45) – fixed IP, DHCP & DDNS Remote Software Pivot Pro™, web client, mobile client for Android® & Apple® smart phones and tablets and Apple TV Backup Device Local backup by USB, network backup by CMS System Recovery after Power Failure Auto-reboot and journaling file system Other function Firmware upgrade FTP, USB Back up USB Special features Local PoE switch Health check Real-time system, network and PoE status monitoring System operation IR remote controller (optional), USB mouse, PTZ control by Keyboard (keyboard not included) Power requirements 110~240V A/C Power consumption IEEE 802.3 at : Auto Power Distribution to each PoE Port(Max. 30W/PoE Port) Operating temperature and humidity 41~104 °F (5~40 °C) / 20~90% RH Dimension (WxDxH) 16.53 x 15.75 x 3.46 Inch (420 x 400 x 88 mm) Certification CE, FCC, KCC, WEEE, RoHS

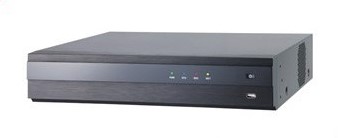

MODEL ZTGN-36CH ZTGN-64CH Max. HDD Bay 9 x SATA HDD 12 X SATA HDD Operating System Embedded Linux IP Camera Channel 36 Ch 64Ch Protocol FOCUS, ONVIF No. of PoE None Resolution Up to 8M (4K ) Display Speed Real time Screen Mode 1, 4, 9, 16, 25, 36 1, 4, 9, 16, 25, 36, 49, 64 Video-In IP Camera (Up to 4K UHD) Video-Out Monitor VGA & HDMI Resolution 1024x768, 1280x1024, 1920x1080, 2560x1440, 2560x1600, 3840x2160(4K) (Selectable) Recording Speed CIF ~ 1080P 1080fps 1920fps 1920P 1080fps 1920fps 2160P 1080fps 1920fps Recording Resolution Main Stream(up to 4K) & Sub Stream Throughput (Max. Bandwidth) 200Mbps 320Mbps Recording Modes Continuous, Motion, Sensor, Continuous +Motion, Continuous +Sensor, Motion + Sensor Pre & Post Alarm Recording, Emergency Recording, Quick Backup Playback & Search Speed x1, x2, x4, x8, x16, x32, x64, x99 Ch & Resolution 1 & 4 & 9 & 16: Main Stream, More than 25channels mode : Sub Stream Function Search by Time Bar, Calendar (Date & Time) and Event Search, Smart Search, Advanced Smart Search Simultaneous Playback 36Ch Real time Playback 64Ch Real time Playback Sensor in /Relay Output 16Ch / 4 Ch P/T/Z Control RS-485, ONVIF LAN Gigabit Ethernet (RJ45) x 2EA, Fixed IP, DHCP & DDNS, DHCP server embedded Network Function 1) Dual-Stream (Local Recording & Network Transmission) 2) Dual-Recording(Live Display / Playback) 3) Live Monitoring, Remote Playback and File Backup (Triplex-on-Remote) 4) Time Synchronization by NTP Server ("pool.ntp.org") 5) Remote & E-Mail Notification, Remote System Reboot by IE, Remote PTZ Control 6) P2P Service (No Port forwarding required) Remote Management Software CMS & MV3000(Mobile App) Web (IE) Live Monitoring, Playback & System Configuration Backup Device Local Backup by USB ODD, Network Backup by CMS, File Upload to FTP Server System Recovery after Power Failure Auto-Reboot and Journaling File System Advanced Functions 1) Firmware Upgrade by USB & CMS over Network 2) Import & Export of Setting Value, Water-Mark, AVI File Backup 3) Easy Setup by Startup Wizard 4) HDD SMART Info (Model, Capacity, Bad Sector, Temperature, Used Period) 5) Tool for System Performance Monitoring at a glance 6) Help Message for easy setup & Multi-Language support 7) Digital Zoom for both Live & VOD mode 8) Smart Search POS Text-in Based (USB to Serial support, TCP/IP Network) System Operation Front Button, IR Remote Controller, USB Mouse, Keyboard (Option) Power DC 12V 110 ~ 240 AC Operating Temperature and Humidity 5~40 ℃ / 20~90% RH Dimension (WxDxH) 420 x 400 x 88 (mm) 430 x 400 x 132 (mm) Certification CE & FCC & KCC & WEEE, RoHS

MODEL ZTGN-36CH ZTGN-64CH Max. HDD Bay 9 x SATA HDD 12 X SATA HDD Operating System Embedded Linux IP Camera Channel 36 Ch 64Ch Protocol FOCUS, ONVIF No. of PoE None Resolution Up to 8M (4K ) Display Speed Real time Screen Mode 1, 4, 9, 16, 25, 36 1, 4, 9, 16, 25, 36, 49, 64 Video-In IP Camera (Up to 4K UHD) Video-Out Monitor VGA & HDMI Resolution 1024x768, 1280x1024, 1920x1080, 2560x1440, 2560x1600, 3840x2160(4K) (Selectable) Recording Speed CIF ~ 1080P 1080fps 1920fps 1920P 1080fps 1920fps 2160P 1080fps 1920fps Recording Resolution Main Stream(up to 4K) & Sub Stream Throughput (Max. Bandwidth) 200Mbps 320Mbps Recording Modes Continuous, Motion, Sensor, Continuous +Motion, Continuous +Sensor, Motion + Sensor Pre & Post Alarm Recording, Emergency Recording, Quick Backup Playback & Search Speed x1, x2, x4, x8, x16, x32, x64, x99 Ch & Resolution 1 & 4 & 9 & 16: Main Stream, More than 25channels mode : Sub Stream Function Search by Time Bar, Calendar (Date & Time) and Event Search, Smart Search, Advanced Smart Search Simultaneous Playback 36Ch Real time Playback 64Ch Real time Playback Sensor in /Relay Output 16Ch / 4 Ch P/T/Z Control RS-485, ONVIF LAN Gigabit Ethernet (RJ45) x 2EA, Fixed IP, DHCP & DDNS, DHCP server embedded Network Function 1) Dual-Stream (Local Recording & Network Transmission) 2) Dual-Recording(Live Display / Playback) 3) Live Monitoring, Remote Playback and File Backup (Triplex-on-Remote) 4) Time Synchronization by NTP Server ("pool.ntp.org") 5) Remote & E-Mail Notification, Remote System Reboot by IE, Remote PTZ Control 6) P2P Service (No Port forwarding required) Remote Management Software CMS & MV3000(Mobile App) Web (IE) Live Monitoring, Playback & System Configuration Backup Device Local Backup by USB ODD,E-SATA , Network Backup by CMS, File Upload to FTP Server System Recovery after Power Failure Auto-Reboot and Journaling File System Advanced Functions 1) Firmware Upgrade by USB & CMS over Network 2) Import & Export of Setting Value, Water-Mark, AVI File Backup 3) Easy Setup by Startup Wizard 4) HDD SMART Info (Model, Capacity, Bad Sector, Temperature, Used Period) 5) Tool for System Performance Monitoring at a glance 6) Help Message for easy setup & Multi-Language support 7) Digital Zoom for both Live & VOD mode 8) Smart Search POS Text-in Based (USB to Serial support, TCP/IP Network) System Operation Front Button, IR Remote Controller, USB Mouse, Keyboard (Option) Power DC 12V 110 ~ 240 AC Operating Temperature and Humidity 5~40 ℃ / 20~90% RH Dimension (WxDxH) 420 x 400 x 88 (mm) 430 x 400 x 132 (mm) Certification CE & FCC & KCC & WEEE, RoHS

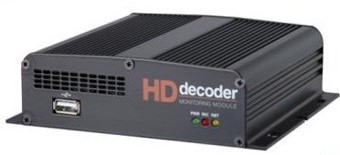

System Embedded Linux IP Camera # of Channel 16 channels IP Camera Protocol ONVIF, FOCUS Display Speed 480 fps Display Screen mode 4,9,16 Video in 1) Up to 4K IP cameras (3840 x 2160) 2) NVR 3) DVR Video out Monitor HDMI (1), VGA (1) Video out Resolution Up to 4K (3840 x 2160) LAN x 10/100/1000Mbps gigabit ethernet (RJ45) Fixed IP, DHCP & DDNS Network Function 1) Live monitoring 2) Time synchronization by NTP server Remote Managing Application MV3000 (Application on Mobile) Remote Managing Web (IE) System settings System recovery after power failure Auto-reboot and log file system Advanced Features 1) Firmware upgrade by USB and CMS 2) Import & export settings 3) Warning alarm for system over-heating 4) Digital zoom System operation USB mouse Power DC 12v 1A Operating temp / Humidity 5~40 ℃ / 20~90% RH Dimensions (WxDxH) 139 x 123 x 32 (mm)

System Embedded Linux IP Camera # of Channel 36 channel IP Camera Protocol ONVIF, FOCUS Display Speed 960 fps Display Screen mode 4,9,16,25,36 Video in 1) Up to 4K IP cameras (3840 x 2160) 2) NVR 3) DVR Video out Monitor HDMI (1), VGA (1) Video out Resolution Up to 4K (3840 x 2160) LAN x 10/100/1000Mbps gigabit ethernet (RJ45) Fixed IP, DHCP & DDNS Network Function 1) Live monitoring 2) Time synchronization by NTP server Remote Managing Application MV3000 (Application on Mobile) Remote Managing Web (IE) System settings System recovery after power failure Auto-reboot and log file system Advanced Features 1) Firmware upgrade by USB and CMS 2) Import & export settings 3) Warning alarm for system over-heating 4) Digital zoom System operation USB mouse Power DC 12v 1A Operating temp / Humidity 5~40 ℃ / 20~90% RH Dimensions (WxDxH) 264x245x44 (mm)

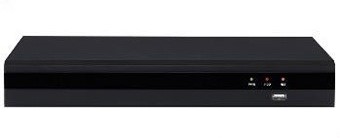

Max. HDD Bay 1 x SATA HDD Operating System Embedded Linux IP Camera Channel 4 Ch IP Camera Protocol ONVIF IP Camera No. of PoE 4 Ch IP Camera PoE Type 100Mbps, 802.3at Video-In IP Camera (Up to 4K UHD) Video-Out Monitor Composite & VGA & HDMI Video-Out Resolution HDMI: 800x600, 1024x768, 1280x1024, 1920x1080, 3840×2160 (4K) (Selectable) Recording Speed CIF ~ 1080P 120fps Recording Speed 1920P 120fps Recording Speed 2160P 120fps Recording Resolution 40Mbps Network bandwidth (Max) Continuous, Scheduled, Sensor-Activated & Motion Detection Recording Recording Modes Pre & Post Alarm Recording, Emergency Recording, Quick Backup Playback & Search Speed x1, x2, x4, x8, x16, x32, x64, x99 Playback & Search Ch & Resolution 1 & 4 : Main Stream, 9 & 16 : Sub Stream Playback & Search Function Intelli-Search by Time Bar, Calendar (Date & Time) and Event Search Audio Input / Output 1 Ch / 1 Ch Alarm Input / Relay Output 4 Ch / 1 Ch P/T/Z Control ONVIF LAN Gigabit Ethernet (RJ45) - Fixed IP, DHCP & DDNS Network Function 1) Dual-Stream (Local Recording & Network Transmission) 2) Dual-Recording (Live Display / Playback) 3) Live Monitoring, Remote Playback and File Backup (Triplex-on-Remote) 4) Time Synchronization by NTP Server ("pool.ntp.org") 5) Remote & E-Mail Notification, Remote System Reboot by IE, Remote PTZ Control 6) P2P Service (No Port forwarding required) Remote Management Software CMS & MMS (MV3000) Remote Management Web (IE) Live Monitoring, Playback & System Configuration Backup Device Local Backup by USB ODD, Network Backup by CMS, File Upload to FTP Server System Recovery after Power Failure Auto-Reboot and Journaling File System Advanced Functions 1) Firmware Upgrade by USB & CMS over Network 2) Import & Export of Setting Value, Water-Mark, AVI File Backup 3) Quick Setup to designate Recording Period 4) HDD SMART Info (Model, Capacity, Bad Sector, Temperature, Used Period) 5) Warning Alarm for System Over-Temperature 6) Help Message for easy setup & Multi-Language support 7) Digital Zoom for both Live & VOD mode 8) Smart Search POS Text-in Based (USB to Serial support, TCP/IP Network) System Operation IR Remote Controller, USB Mouse, Keyboard (Option) Power 48V 1.36A D/C Operating Temperature and Humidity 5~40 ℃ / 20~90% RH Dimension (WxDxH) 315 × 240 × 48 mm (1U) Certification CE & FCC & KCC & WEEE, RoHS

Max. HDD Bay 2 x SATA HDD Operating System Embedded Linux IP Camera Channel 8 Ch + 1 Ch(additional) IP Camera Protocol ONVIF IP Camera No. of PoE 8 Ch IP Camera PoE Type 100Mbps, 802.3at Video-In IP Camera (Up to 4K UHD) Video-Out Monitor Composite & VGA & HDMI Video-Out Resolution HDMI: 800x600, 1024x768, 1280x1024, 1920x1080, 3840×2160 (4K) (Selectable) Recording Speed CIF ~ 1080P 270fps Recording Speed 1920P 270fps Recording Speed 2160P 270fps Recording Resolution 40Mbps Network bandwidth (Max) Continuous, Scheduled, Sensor-Activated & Motion Detection Recording Recording Modes Pre & Post Alarm Recording, Emergency Recording, Quick Backup Playback & Search Speed x1, x2, x4, x8, x16, x32, x64, x99 Playback & Search Ch & Resolution 1 & 4 : Main Stream, 9 & 16 : Sub Stream Playback & Search Function Intelli-Search by Time Bar, Calendar (Date & Time) and Event Search Audio Input / Output 1 Ch / 1 Ch Alarm Input / Relay Output 4 Ch / 1 Ch P/T/Z Control ONVIF LAN Gigabit Ethernet (RJ45) - Fixed IP, DHCP & DDNS Network Function 1) Dual-Stream (Local Recording & Network Transmission) 2) Dual-Recording (Live Display / Playback) 3) Live Monitoring, Remote Playback and File Backup (Triplex-on-Remote) 4) Time Synchronization by NTP Server ("pool.ntp.org") 5) Remote & E-Mail Notification, Remote System Reboot by IE, Remote PTZ Control 6) P2P Service (No Port forwarding required) Remote Management Software CMS & MMS (MV3000) Remote Management Web (IE) Live Monitoring, Playback & System Configuration Backup Device Local Backup by USB ODD, Network Backup by CMS, File Upload to FTP Server System Recovery after Power Failure Auto-Reboot and Journaling File System Advanced Functions 1) Firmware Upgrade by USB & CMS over Network 2) Import & Export of Setting Value, Water-Mark, AVI File Backup 3) Quick Setup to designate Recording Period 4) HDD SMART Info (Model, Capacity, Bad Sector, Temperature, Used Period) 5) Warning Alarm for System Over-Temperature 6) Help Message for easy setup & Multi-Language support 7) Digital Zoom for both Live & VOD mode 8) Smart Search POS Text-in Based (USB to Serial support, TCP/IP Network) System Operation IR Remote Controller, USB Mouse, Keyboard (Option) Power 110~240V A/C (180W) Operating Temperature and Humidity 5~40 ℃ / 20~90% RH Dimension (WxDxH) 385 × 315 × 52 mm (1U) Certification CE & FCC & KCC & WEEE, RoHS

Max. HDD Bay 2 x SATA HDD Operating System Embedded Linux IP Camera Channel 16 Ch IP Camera Protocol ONVIF IP Camera No. of PoE 16 Ch IP Camera PoE Type 100Mbps, 802.3at Video-In IP Camera (Up to 4K UHD) Video-Out Monitor Composite & VGA & HDMI Video-Out Resolution HDMI: 800x600, 1024x768, 1280x1024, 1920x1080, 3840×2160 (4K) (Selectable) Recording Speed CIF ~ 1080P 480fps Recording Speed 1920P 480fps Recording Speed 2160P 480fps Recording Resolution 40Mbps Network bandwidth (Max) Continuous, Scheduled, Sensor-Activated & Motion Detection Recording Recording Modes Pre & Post Alarm Recording, Emergency Recording, Quick Backup Playback & Search Speed x1, x2, x4, x8, x16, x32, x64, x99 Playback & Search Ch & Resolution 1 & 4 : Main Stream, 9 & 16 : Sub Stream Playback & Search Function Intelli-Search by Time Bar, Calendar (Date & Time) and Event Search Audio Input / Output 1 Ch / 1 Ch Alarm Input / Relay Output 4 Ch / 1 Ch P/T/Z Control ONVIF LAN Gigabit Ethernet (RJ45) - Fixed IP, DHCP & DDNS Network Function 1) Dual-Stream (Local Recording & Network Transmission) 2) Dual-Recording (Live Display / Playback) 3) Live Monitoring, Remote Playback and File Backup (Triplex-on-Remote) 4) Time Synchronization by NTP Server ("pool.ntp.org") 5) Remote & E-Mail Notification, Remote System Reboot by IE, Remote PTZ Control 6) P2P Service (No Port forwarding required) Remote Management Software CMS & MMS (MV3000) Remote Management Web (IE) Live Monitoring, Playback & System Configuration Backup Device Local Backup by USB ODD, Network Backup by CMS, File Upload to FTP Server System Recovery after Power Failure Auto-Reboot and Journaling File System Advanced Functions 1) Firmware Upgrade by USB & CMS over Network 2) Import & Export of Setting Value, Water-Mark, AVI File Backup 3) Quick Setup to designate Recording Period 4) HDD SMART Info (Model, Capacity, Bad Sector, Temperature, Used Period) 5) Warning Alarm for System Over-Temperature 6) Help Message for easy setup & Multi-Language support 7) Digital Zoom for both Live & VOD mode 8) Smart Search POS Text-in Based (USB to Serial support, TCP/IP Network) System Operation IR Remote Controller, USB Mouse, Keyboard (Option) Power 110 ~240V A/C (280W) Operating Temperature and Humidity 5~40 ℃ / 20~90% RH Dimension (WxDxH) 385 × 315 × 52 mm (1U) Certification CE & FCC & KCC & WEEE, RoHS

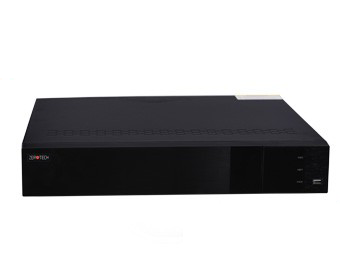

Model ZTNX-324K-H8FR System Compression Standard H.265 OS Embedded Linux Video Network Input 32 CH IPC input IP Input Access / Transfer Bandwidth 256Mbps / 256Mbps Network Access Format 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P@25/ 30fps Output HDMI × 2 : one of 4K × 2K / 1920 × 1080 / 1280 × 1024 the other of 1920 × 1080 / 1280 × 1024 VGA × 1 : 1920 × 1080 / 1280 × 1024 Audio Network Input 32 CH IPC audio input 2-way Audio RCA × 1 Local Output RCA × 1 Record Record Stream Dual stream recording Resolution 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P@25/ 30fps Mode Manual, timer, motion, sensor Playback Simultaneous Playback Max 16 CH Search Time slice / time / event / tag search Smart Search Highlighted color to display the camera record in a certain period of time, different colors refers to different record events Function Play, pause, FF, FB, digital zoom, etc. Alarm Mode Manual, sensor, motion, exception Input 8 CH local alarm input, support IPC alarm input Output 4 CH Triggering Record, snap, preset, e-mail, etc. Face Channel 32 CH Face Picture Database 16 libraries 10000 Face Pictures Computing Capability 240 pictures / minute Face Picture Search Search by picture is supported Database Management Add, modify, delete and search face pictures Face Picture Adding Add face pictures through APP, WEB and local PC External face picture enrollment Resolution：64 x 64 〜 1920 x 1080 Size：less than 200KB Format : jpg Face Picture Comparison Support allow list and block list alarm Face Trace Yes Map of Face Trace Reolution：600 x 300 〜 3840 x 2160 Size：within 200KB Format : jpg Statistic Graph of Face Information Bar graph, pie chart Statistic Mode of Face Information Statistics by day, week, month, quarter as well as customized time period
