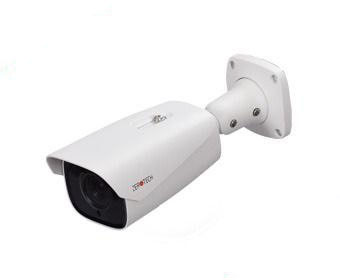

Model Specifications ZTIPB-X8MT-AF Camera Image Sensor 1 / 2.8" CMOS Image Size 3840×2160 Electronic Shutter 1 / 25 s ~ 1 / 100000 s Iris Type DC Iris Min. Illumination 0.01 lux @ F1.2, AGC ON; 0 lux with IR 0.015 lux@F1.4, AGC ON; 0 lux with IR Lens 2.8~12mm@F1.4, motorized Field of View Horizontal: 96°~32°; Vertical:64°~18.4°; Diagonal: 103.8°~36.5° Lens Mount Φ14 Day&Night ICR Wide Dynamic Range 120dB BLC Yes HLC Yes Defog Yes Digital NR 3D DNR Angle Adjustment Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° Image Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG H.264 Compression Standard Baseline Profile/Main Profile/High Profile Resolution 8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944), 4MP( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 Main Stream 60Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1080P/720P(1~30fps) 50Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1080P/720P(1~25fps) HFR Mode: 1080P/720P(60Hz: 1~60fps; 50Hz: 1~50fps) Sub Stream 720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps) Third Stream D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps) Bit Rate 64 Kbps ~ 12 Mbps Bit Rate Type VBR / CBR Audio Compression G711A / U Image Settings ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser ROI Each ROI to be configured separately Intelligent Analytics (Smart Events) Perimeter Protection Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) Target Counting Line crossing human/motor vehicle/non-motor vehicle counting Exception Detection Scene change, video blur and video color cast detection Face Detection Face detection and face capture General Intelligence Crowd density detection, heat map, object abandoned/missing detection*
