المنتجات Low Current Systems DVR

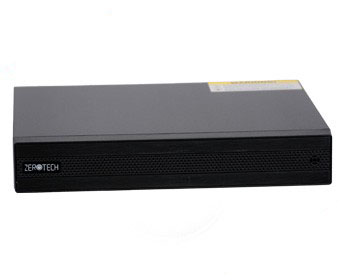

ZTDX-8CH

System OS Embedded Linux Video Compression Standard H.264 High Profile Analog Input BNC × 8; (1.0Vp-p; 75Ω) Resolution TVI / CVI / AHD: 1080P Lite/720P/720P Lite/ WD1 real time IP Input 1CH (up to 9CH) Resolution: up to 1080P@30fps Output HDMI × 1 : 1920 × 1080, 1280 × 1024,1024 × 768 VGA × 1 : 1920 × 1080, 1280 × 1024,1024 × 768 Audio Compression G.711(U/A) Input RCA × 1 Output RCA × 1 (Linear; 600Ω) Two-way audio Take up channel one audio input Record Resolution 1080P lite, 720P, WD1 Frame Rate 1080P lite: 25 fps (PAL /NTSC) 720P/ WD1: 25 / 30 fps (PAL /NTSC) Bit Rate 128Kbps ~ 2Mbps Mode Manual, timer, motion Playback Playback 8 CH Search Time slice / time / event / tag search/smart search Smart Search Highlighted color to display the camera record in a certain period of time, different colors refers to different record events Function Play, pause, FF, FB, digital zoom, etc. Alarm Mode Manual, motion, exception Input No Output No Triggering Record, snap, preset, e-mail, etc. Network Interface RJ 45 10M / 100Mbps × 1 Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs Incoming Bandwidth 4Mbps (Max. 36Mbps) Outgoing Bandwidth 18 Mbps Mobile Device OS iOS, Android Storage HDD SATA × 1, max 6T Backup Local Backup USB mobile HDD Network Backup Yes Port RS 485 No USB USB 2.0 × 2 Remote Controller No Others Power Supply DC 12V/1.5A Consumption ≤ 5W (without HDD) Dimensions (mm) 255 × 232 × 42 (W × D × H) Work Environment -10 ～ 50 ℃，10% ～ 90% humidity

رمز المنتج : ZTDX-8CH

تفاصيل المنتج

المتوفر بالمقاسات :

اطلب الآن

منتجات مماثلة

منتجات مماثلة مقترحة

ztd-4ch1080p-h265

ZTD-4CH1080P-H.265

System Main Processor HI3520DV400 HiSilicon CPU Codec H.265 (High Profile)； System Resources Simultaneous multi-channel recording, playback, network operation, USB backup Interface Operator Interface 16-bit true color graphic menu operation interface, support mouse operation Preview 1/4/8/9 split screen Video Monitor quality VGA(1080P at most); HDMI(1080P at most) Preview ability 4*5M-N@20fps（6 in 1）/4*4M-N@15fps（6 in 1）/4*1080P（6 in 1） Encode ability 4*5M-N@15fps（6 in 1）4*4M-N@15fps（6 in 1）/4*1080P@18fps（6 in 1） Decode ability 1*5M-N@15fps（6 in 1）2*4M-N@15fps（6 in 1）/4*1080P@18fps（6 in 1） Multi-mode input Analog：4*4M-N；4*1080P Digital to analog conversion：support（except hybrid mode） hybrid：4*1080P（analog）+4*1080P（network） network：16*1080P; 8*5M Motion Detection Depend on camera, Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) Audio Audio Compression G.711A Intercom Support Record & playback Recording Mode Manual>Alarm>Video Detection>timing Video storage HDD, network Backup mode Network, USB hard disk, USB burner, SATA burner Search Mode Search by Time/ Calendar/ Event/ Channel External interface Video Input 4ch BNC Video Output 1ch HDMI, 1ch VGA Audio I/O 4CH RCA input/ 1CH RCA output Alarm I/O 0/0 Network Interface 1*RJ45 10M/100M Adaptive Ethernet port USB Interface 2* USB 2.0 ports Wireless 3G, WIFI (Extend Via USB) HDD 1*SATA (Up to 8TB) General PTZ Control Control PTZ device by Coaxial Control ONVIF Support Power Supply 12V/2A Power Consumption <15W (Without HDD) Work Environment Temperature: 0℃-＋55℃, Humidity: 10%－90%RH, Atm: 86kpa－106kp Dimension 255(length)*218(width)*43(height)mm

اطلب الآن عرض التفاصيل

ztd-8ch1080n-h265

ZTD-8CH1080N-H.265

System Main Processor Hi3520DV400 HiSilicon CPU Codec H.265 (High Profile)； System Resources Simultaneous multi-channel recording, playback, network operation, USB backup Interface Operator Interface 16-bit true color graphic menu operation interface, support mouse operation Preview 1/4/8/9 split screen Video Monitor quality VGA(1080P at most); HDMI(1080P at most) Preview ability 8*1080N(6 in 1) Encode ability 8*1080N@15fps(6 in 1) Decode ability 8*1080N@15fps(6 in 1) Multi-mode input Analog：8*1080N；4*1080P Digital to analog conversion：support network：16*1080P；8*5M Motion Detection Depend on camera, Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) Audio Audio Compression G.711A Intercom Support Record & playback Recording Mode Manual>Alarm>Video Detection>timing Video storage HDD, network Backup mode Network, USB hard disk, USB burner, SATA burner Search Mode Search by Time/ Calendar/ Event/ Channel External interface Video Input 8ch BNC Video Output 1ch HDMI, 1ch VGA Audio I/O 4CH RCA input/ 1CH RCA output Alarm I/O 0/0 Network Interface 1*RJ45 10M/100M Adaptive Ethernet port USB Interface 2* USB 2.0 ports Wireless 3G, WIFI (Extend Via USB) HDD 1*SATA (Up to 8TB) General PTZ Control Control PTZ device by Coaxial Control ONVIF Support Power Supply 12V/2A Power Consumption <15W (Without HDD) Work Environment Temperature: 0℃-＋55℃, Humidity: 10%－90%RH, Atm: 86kpa－106kp Dimension 255(length)*218(width)*43(height)mm

اطلب الآن عرض التفاصيل

ztd-16ch1080n-h265

ZTD-16CH1080N-H.265

System Main Processor Hi3521D HiSilicon CPU Codec H.265 (High Profile)； System Resources Simultaneous multi-channel recording, playback, network operation, USB backup Interface Operator Interface 16- bit true color graphic menu operation interface, support mouse operation Preview 1/4/8/9/16 split screen Video Monitor quality VGA(1080P at most); HDMI(1080P at most) Preview ability 16*1080N(6 in 1) Encode ability 16*1080N@15fps(6 in 1)/8*1080N(6 in 1) Decode ability 16*1080N@15fps(6 in 1)/8*1080N(6 in 1) Multi-mode input Analog：16*1080N；8*1080N; Digital to analog conversion：support hybrid： 8*1080N（analog）+8*960P（network） network：8*1080P+8*960P ; 4*3M；4*5M Motion Detection Depend on camera, Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) Audio Audio Compression G.711A Intercom Support Record & playback Recording Mode Manual>Alarm>Video Detection>timing Video storage HDD, network Backup mode Network, USB hard disk, USB burner, SATA burner Search Mode Search by Time/ Calendar/ Event/ Channel External interface Video Input 16ch BNC Video Output 1ch HDMI, 1ch VGA Audio I/O 2CH RCA input/ 1CH RCA output Alarm I/O 0/0 Network Interface 1*RJ45 10M/100M Adaptive Ethernet port USB Interface 2* USB 2.0 ports Wireless 3G, WIFI (Extend Via USB) HDD 1*SATA (Up to 8TB) General PTZ Control Control PTZ device by RS485 + Coaxial Control ONVIF Support Power Supply 12V/2A Power Consumption <15W (Without HDD) Work Environment Temperature: 0℃-＋55℃, Humidity: 10%－90%RH, Atm: 86kpa－106kp Dimension 255(length)*218(width)*43(height)mm

اطلب الآن عرض التفاصيل
