المنتجات Low Current Systems DVR

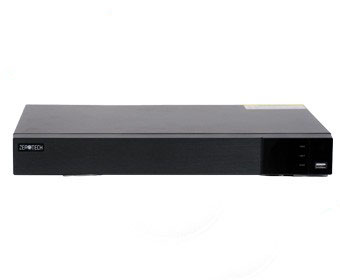

ZTDX-4CH5M

System OS Embedded Linux Video Analog Video Input BNC × 4 Analog Video Input BNC interface (1.0Vp-p; 75Ω) Analog Video Input TVI/AHD/CVI: 5MP/ 4MP/ 1080P/ 720P/ WD1 (live) IP Video Input 2CH (up to 6CH) IP Video Input Up to 5MP@25fps/4MP@30fps Total Input 6CH Output HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output ) Compression H.264/H.265 Audio Input RCA × 4 Output RCA × 1 (linear, 600Ω) Two-way audio Take up channel one audio input Compression G.711(U/A) Record Resolution 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1/D1 Frame Rate Analog Channel: 5MP Lite@10fps (PAL / NTSC) 4MP Lite/1080P@12fps(PAL) / 15fps (NTSC) 1080P Lite/720P/WD1/D1@25fps(PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC) Bit Rate 32Kbps ~ 4Mbps Mode Manual, timer, motion, smart event Playback Search Time slice / time / event / tag search Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events Function Play, pause, FF, FB, digital zoom, etc. Alarm Mode Manual, motion, exception, smart event Input 4CH Output 1CH Network Interface RJ 45 100Mbps × 1 Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP Incoming Bandwidth 16Mbps (Max. 36Mbps) Outgoing Bandwidth 40Mbps Mobile Device OS iOS, Android Backup Local Backup U disk, USB removable HDD Network Backup Yes Port RS485 RS485 × 1, connect to PTZ or keyboard USB USB 2.0 × 2 (in the rear panel) Remote Controller Optional Others Power Supply DC12V/2A Consumption ≤ 10W (without HDD) Dimensions (mm) 300 × 249 × 45mm (W × D × H) Work Environment -10 ～ 50 ℃，10% ～ 90% humidity

رمز المنتج : ZTDX-4CH5M

تفاصيل المنتج

المتوفر بالمقاسات :

اطلب الآن
