المنتجات Low Current Systems DVR

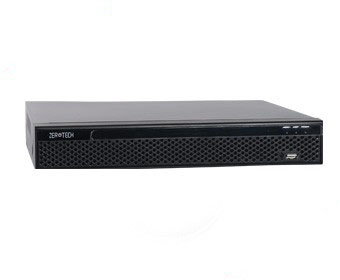

ZTDV-4CH4KL

System Main Processor HI3520DV400 Operating System Embedded LINUX Video Input Normal Mode: Default: 4*(AHD/TVI/CVI:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+2*network(MAX 5MP) Analog+Network: 2*Analog(AHD/TVI/CVI:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+7*network(MAX 5MP) Lite Mode: Default: 4*(TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+2*network(MAX 5MP) Analog+Network: 2*Analog(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+7*network(MAX 5MP) Network: 16*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M) Input 4CH BNC Signal Type Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network Output 1HD,1 VGA, 1 CVBS Audio Input 2 Channel, RCA Two-way Audio NO Output 1 Channel, RCA Alarm / Event Sensor Input 4 CH Output 1 CH Motion Detection 4 Channel (max 16 Channel in pure network mode) Trigger Events Recording, Email, Screen tips, Buzzer, Push notifications (motion detection) Email Alarm Send Image to The Designated E-mail Network Interface 1 RJ45 10M/100M Adaptive Ethernet Interface Network Functions TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE Web Browser IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) CMS Software Support Windows 7/ Windows 8/Windows 10 Extra Stream CIF/D1(1-30fps) Smart Phone iPhone, ipad, Android, Android pad Playback & Backup Decode Capability 2CH 1080P@30fps Sync Playback Pure Analog: 4CH 5M@6fps, 4CH 8M_Lite@8fps, 4CH 4M@8fps, 4CH 3M@9fps, 4CH 1080p@15fps, 4CH 1080N@25fps Mix Mode: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps, 4CH 1080p@15fps Pure IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 4CH 1080P@15fps, 2CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps Remote Playback 4 Channel / 1Channel Search Mode ALL, Channel, Manual, Time, Date, Motion Detection Playback Functions Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen Smart Phone Playback 4 Channel Backup Mode USB Device (with format FAT 32)/Network/FTP Display VGA Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz HD Output Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz 768/60Hz Display Split 16 Channel/9 Channel/4 Channel / 1Channel Privacy Masking 3 Rectangular Zones (Each camera) OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording General Language Simplified Chinese, Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese, Japanese UTC Control YES USB Interface 2 USB 2.0 Interfaces Power consumption DC 12V/2A ≤6W (Without Hard Disk) Working Environment -10~55℃/10~90% Dimension (W×D×H) 260*215*43(mm) Weight 2kg (Without HDD)

رمز المنتج : ZTDV-4CH4KL

تفاصيل المنتج

المتوفر بالمقاسات :

اطلب الآن

منتجات مماثلة

منتجات مماثلة مقترحة

ztd-4ch1080p-h265

ZTD-4CH1080P-H.265

System Main Processor HI3520DV400 HiSilicon CPU Codec H.265 (High Profile)； System Resources Simultaneous multi-channel recording, playback, network operation, USB backup Interface Operator Interface 16-bit true color graphic menu operation interface, support mouse operation Preview 1/4/8/9 split screen Video Monitor quality VGA(1080P at most); HDMI(1080P at most) Preview ability 4*5M-N@20fps（6 in 1）/4*4M-N@15fps（6 in 1）/4*1080P（6 in 1） Encode ability 4*5M-N@15fps（6 in 1）4*4M-N@15fps（6 in 1）/4*1080P@18fps（6 in 1） Decode ability 1*5M-N@15fps（6 in 1）2*4M-N@15fps（6 in 1）/4*1080P@18fps（6 in 1） Multi-mode input Analog：4*4M-N；4*1080P Digital to analog conversion：support（except hybrid mode） hybrid：4*1080P（analog）+4*1080P（network） network：16*1080P; 8*5M Motion Detection Depend on camera, Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) Audio Audio Compression G.711A Intercom Support Record & playback Recording Mode Manual>Alarm>Video Detection>timing Video storage HDD, network Backup mode Network, USB hard disk, USB burner, SATA burner Search Mode Search by Time/ Calendar/ Event/ Channel External interface Video Input 4ch BNC Video Output 1ch HDMI, 1ch VGA Audio I/O 4CH RCA input/ 1CH RCA output Alarm I/O 0/0 Network Interface 1*RJ45 10M/100M Adaptive Ethernet port USB Interface 2* USB 2.0 ports Wireless 3G, WIFI (Extend Via USB) HDD 1*SATA (Up to 8TB) General PTZ Control Control PTZ device by Coaxial Control ONVIF Support Power Supply 12V/2A Power Consumption <15W (Without HDD) Work Environment Temperature: 0℃-＋55℃, Humidity: 10%－90%RH, Atm: 86kpa－106kp Dimension 255(length)*218(width)*43(height)mm

اطلب الآن عرض التفاصيل

ztd-8ch1080n-h265

ZTD-8CH1080N-H.265

System Main Processor Hi3520DV400 HiSilicon CPU Codec H.265 (High Profile)； System Resources Simultaneous multi-channel recording, playback, network operation, USB backup Interface Operator Interface 16-bit true color graphic menu operation interface, support mouse operation Preview 1/4/8/9 split screen Video Monitor quality VGA(1080P at most); HDMI(1080P at most) Preview ability 8*1080N(6 in 1) Encode ability 8*1080N@15fps(6 in 1) Decode ability 8*1080N@15fps(6 in 1) Multi-mode input Analog：8*1080N；4*1080P Digital to analog conversion：support network：16*1080P；8*5M Motion Detection Depend on camera, Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) Audio Audio Compression G.711A Intercom Support Record & playback Recording Mode Manual>Alarm>Video Detection>timing Video storage HDD, network Backup mode Network, USB hard disk, USB burner, SATA burner Search Mode Search by Time/ Calendar/ Event/ Channel External interface Video Input 8ch BNC Video Output 1ch HDMI, 1ch VGA Audio I/O 4CH RCA input/ 1CH RCA output Alarm I/O 0/0 Network Interface 1*RJ45 10M/100M Adaptive Ethernet port USB Interface 2* USB 2.0 ports Wireless 3G, WIFI (Extend Via USB) HDD 1*SATA (Up to 8TB) General PTZ Control Control PTZ device by Coaxial Control ONVIF Support Power Supply 12V/2A Power Consumption <15W (Without HDD) Work Environment Temperature: 0℃-＋55℃, Humidity: 10%－90%RH, Atm: 86kpa－106kp Dimension 255(length)*218(width)*43(height)mm

اطلب الآن عرض التفاصيل

ztd-16ch1080n-h265

ZTD-16CH1080N-H.265

System Main Processor Hi3521D HiSilicon CPU Codec H.265 (High Profile)； System Resources Simultaneous multi-channel recording, playback, network operation, USB backup Interface Operator Interface 16- bit true color graphic menu operation interface, support mouse operation Preview 1/4/8/9/16 split screen Video Monitor quality VGA(1080P at most); HDMI(1080P at most) Preview ability 16*1080N(6 in 1) Encode ability 16*1080N@15fps(6 in 1)/8*1080N(6 in 1) Decode ability 16*1080N@15fps(6 in 1)/8*1080N(6 in 1) Multi-mode input Analog：16*1080N；8*1080N; Digital to analog conversion：support hybrid： 8*1080N（analog）+8*960P（network） network：8*1080P+8*960P ; 4*3M；4*5M Motion Detection Depend on camera, Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) Audio Audio Compression G.711A Intercom Support Record & playback Recording Mode Manual>Alarm>Video Detection>timing Video storage HDD, network Backup mode Network, USB hard disk, USB burner, SATA burner Search Mode Search by Time/ Calendar/ Event/ Channel External interface Video Input 16ch BNC Video Output 1ch HDMI, 1ch VGA Audio I/O 2CH RCA input/ 1CH RCA output Alarm I/O 0/0 Network Interface 1*RJ45 10M/100M Adaptive Ethernet port USB Interface 2* USB 2.0 ports Wireless 3G, WIFI (Extend Via USB) HDD 1*SATA (Up to 8TB) General PTZ Control Control PTZ device by RS485 + Coaxial Control ONVIF Support Power Supply 12V/2A Power Consumption <15W (Without HDD) Work Environment Temperature: 0℃-＋55℃, Humidity: 10%－90%RH, Atm: 86kpa－106kp Dimension 255(length)*218(width)*43(height)mm

اطلب الآن عرض التفاصيل
