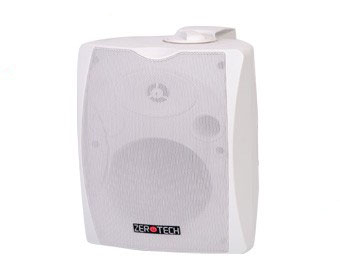

ZTPA-30WWM
project specifications ZTPA-30WWM Acoustic system Speaker unit 5” ×1 , 1 “ ×1 Sensitivity(1m,1w) 90±2dB MAX. S P L(1m) 105±2dB Frequency response 80Hz-20KHz Rated power 30W Other specifications Input Constant voltage 70V/100V Constant resistance 8Ω Dimension (H×W×D) 280×194×185mm Net weight 3.2kg
رمز المنتج : ZTPA-30WWMتفاصيل المنتج
المتوفر بالمقاسات :
منتجات مماثلة
منتجات مماثلة مقترحة
ztpa-6wc
ZTPA-6WC
Model
ZTPA-6WC
Speaker Unit
6.5” X 1
Rated Power
5W
Max Power
8W
Line Input
70/100V
Sensitivity (1M,1W)
93±2dB
Max SPL(1M)
98±2dB
Freq. Response
140-18,000Hz
Cutout Size
Ø165 - Ø170mm
Dimensions (H x W x L)
70 - Ø186mm
Weight
0.5 kg
ztpa-10wcbass
ZTPA-10WCBass
Item
ZTPA-10WCBass
Drive units
6.5"×1，0.75"×1
Rated power (RMS)
10W
Rated Voltage
100V
Sensitivity (1m, 1W)
93±2dB
Max. SPL(1m)
103±2dB
Frequency response
90Hz-18KHz
Dimension of product
Φ190×80mm
Weight
1.0kg
ztpa-bc20w
ZTPA-BC20W
Item
Parameters
Amplifier output
RMS
10W/8Ω
SNR
≥81dB
Channel separation
＞60dB
Speaker
Speaker unit
6.5 inch
Sensitivity
90dB±2dB
SPL
98dB±2dB
Freq. response
110Hz-15KHz
Distortion
≤5%
Bluetooth
Version
BT4.0
Power
Voltage
AC100V-240V 50Hz/60Hz
Dimension
Diameter×H (mm)
Φ190×105mm
Weight
Net weight (kg)
1.0kg
