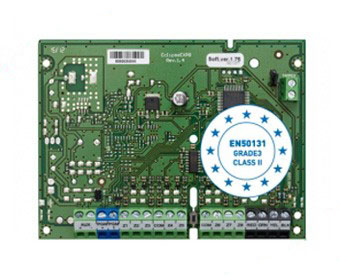

Eclipse Zone 8
Power Supply from the control panel . . . . 9-18V (nom. 14V) Consumption . . . . . . . . . . . . . . . . . . . . Max. 100mA@12VDC Zone Inputs . . . . . . . . . . . . . . . . . . . . . 8 PGM Output . . . . . . . . . . . . . . . . . . . . . 1 Indication type . . . . . . . . . . . . . . . . . . . LED Operation temperature . . . . . . . . . . . . . -20 up to +50°C
رمز المنتج : Eclipse Zone 8تفاصيل المنتج
المتوفر بالمقاسات :
منتجات مماثلة
منتجات مماثلة مقترحة
eclipse-32
Eclipse 32
Mains Supply Voltage. . . . . . 230VAC ± 10%; fuse 0.63A Mains Transformer . . . . . . . . 21 VAC / 50 VA
Back-up Battery . . . . . . . . . 12V / 7 Ah
Battery Charger . . . . . . . . . . 13.8 V / 0.75A Resettable fuse Current consumption . . . . . . 2,5A (from external devices) Power output . . . . . . . . . . . 13.8 V DC / 1A Resettable fuse Installation wires . . . . . . . . . 2.5mm2
Operating Temperature . . . . . 0°C / +50°C Dimensions, plastic box . . . . 335 x 290 x 105 mm
eclipse-lcd32-pr
Eclipse LCD32 PR
Power Supply from the control panel . . . . 9-18V (nom. 14V) Consumption . . . . . . . . . . . . . . . . . . . . Min. 60mA / Max. 100mA
Area Indication.............................. 8
Zone Indication.............................. 32
Panic buttons . . . . . . . . . . . . . . . . . . . . Yes
Buttons . . . . . . . . . . . . . . . . . . . . . . . . Rubber
Operation temperature . . . . . . . . . . . . . -20°C to +50°C Tamper . . . . . . . . . . . . . . . . . . . . . . . . Yes
Dimensions . . . . . . . . . . . . . . . . . . . . . 108x134x23mm
eclipse-led16a
Eclipse LED16A
Power Supply from the control panel . . . . 9-18V (nom. 14V) Consumption . . . . . . . . . . . . . . . . . . . . Min. 50mA / Max. 80mA
Area Indication.............................. 3
Zone Indication.............................. 16
Panic buttons . . . . . . . . . . . . . . . . . . . . Yes
Buttons . . . . . . . . . . . . . . . . . . . . . . . . Rubber
Operation temperature . . . . . . . . . . . . . -20 to +50°C Tamper . . . . . . . . . . . . . . . . . . . . . . . . Yes
Dimensions . . . . . . . . . . . . . . . . . . . . . 100x90x24mm
