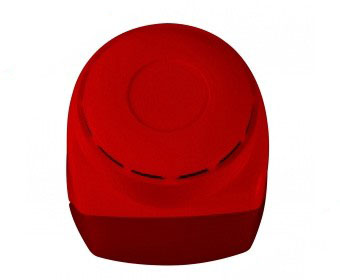

SF105
Operating Voltage Range . . . . . . 16-30VDC Consumption . . . . . . . . . . . . . . 80mA Sound output. . . . . . . . . . . . . . 105dB@1m Sounder Type. . . . . . . . . . . . . . Piezo Operating Temperature . . . . . . . -25°C to +60°C Weight . . . . . . . . . . . . . . . . . . ~0.08kg Dimensions . . . . . . . . . . . . . . . 80x65x40mm Materials, color . . . . . . . . . . . . plastic, red Base Frequency . . . . . . . . . . . . 2.9 - 4.0 kHz Modulating Frequency. . . . . . . . 3.2 Hz
رمز المنتج : SF105تفاصيل المنتج
المتوفر بالمقاسات :
منتجات مماثلة
منتجات مماثلة مقترحة
mag2p
MAG2P
Main Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . ~230 ± 10%
Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50/ 60Hz
Back-up Power Supply . . . . . . . . . . . . . . . . . . . . . . 1 battery, 12V/ 7Ah
Power availability . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7A Main
power supply fail consumption. . . . . . . . . . . . . 50mA
Outputs (sounder circuits on the control PCB module) . . . 2; 24V/ 0.3A fuse
Output, FAULT Relay . . . . . . . . . . . . . . . . . . . . . . . . 1; 3A@120VAC; 3A@60VDC Output,
FIRE Relay . . . . . . . . . . . . . . . . . . . . . . . . . 1; 3A@120VAC; 3A@60VDC
Auxiliary output . . . . . . . . . . . . . . . . . . . . . . . . . . . 24VDC/ 0.3A fuse
Fixed zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Detectors per zone / max. number of detectors . . . . . 32/ 64
Multi language front panels . . . . . . . . . . . . . . . . . . . YES
Operating temperature . . . . . . . . . . . . . . . . . . . . . . 0°C to +40°C
Relative humidity resistance . . . . . . . . . . . . . . . . . . (93 ± 3)% @ 40°C
Weight (without battery) . . . . . . . . . . . . . . . . . . . . . ~2.1kg
Dimensions of the plastic box . . . . . . . . . . . . . . . . . 340x290x100mm
mag-4
MAG 4
Main Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . ~230 ± 10%
Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50/ 60Hz
Back-up Power Supply . . . . . . . . . . . . . . . . . . . . . . 1 battery, 12V/ 7Ah
Power availability . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7A
Main power supply fail consumption. . . . . . . . . . . . . 50mA
Outputs (sounder circuits on the control PCB module) . . . 2; 24V/ 0.3A fuse
Output, FAULT Relay . . . . . . . . . . . . . . . . . . . . . . . . 1; 3A@120VAC; 3A@60VDC
Output, FIRE Relay . . . . . . . . . . . . . . . . . . . . . . . . . 1; 3A@120VAC; 3A@60VDC
Auxiliary output . . . . . . . . . . . . . . . . . . . . . . . . . . . 24VDC/ 0.3A fuse
Fixed zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Detectors per zone / max. number of detectors . . . . . 32/ 128
Multi language front panels . . . . . . . . . . . . . . . . . . . YES
Operating temperature . . . . . . . . . . . . . . . . . . . . . . 0°C to +40°C
Relative humidity resistance . . . . . . . . . . . . . . . . . . (93 ± 3)% @
40°C Weight (without battery) . . . . . . . . . . . . . . . . . . . . . ~3.5kg
Dimensions of the metal box . . . . . . . . . . . . . . . . . . 320x220x80mm
mag-8
MAG 8
Main Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . ~230VAC ± 10%
Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50/ 60Hz
Back-up Power Supply . . . . . . . . . . . . . . . . . . . . . . 1 battery, 12V/ 7Ah
Power availability . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7A
Main power supply fail consumption. . . . . . . . . . . . . 125mA
Outputs (sounder circuits on the control PCB module) . . . 2; 24V/ 0.5A fuse
Output, FAULT Relay . . . . . . . . . . . . . . . . . . . . . . . . 1; 3A@24VDC
Output, FIRE Relay . . . . . . . . . . . . . . . . . . . . . . . . . 1; 3A@24VDC
Auxiliary output . . . . . . . . . . . . . . . . . . . . . . . . . . . 24VDC/ 0.3A
fuse Fixed zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Detectors per zone / max. number of detectors . . . . . 32/ 256
Multi language front panels . . . . . . . . . . . . . . . . . . . YES
Operating temperature . . . . . . . . . . . . . . . . . . . . . . 0°C to +40°C
Relative humidity resistance . . . . . . . . . . . . . . . . . . (93 ± 3)% @
40°C Weight (without battery) . . . . . . . . . . . . . . . . . . . . . ~2.4kg
Dimensions of plastic box . . . . . . . . . . . . . . . . . . . . 340x290x100mm
