BRAVO PSTN VD
BRAVO PSTN VD

BRAVO PSTN VD

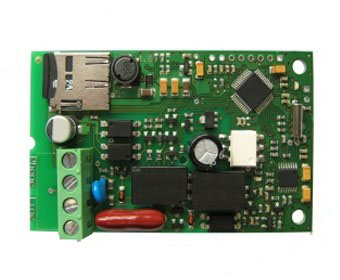

BRAVO PSTN VD is a communication module with dialer for voice messaging. The module is designed for operation in BRAVO wireless intruder alarm systems. The module is mounted into BRAVO panel via serial interface connection. The BRAVO PSTN VD module sends messages for events to 2 telephone numbers - to monitoring station (CID or SIA communication protocols) or directly to User (User communication protocol - audio call on Alarm only or Voice dialer). The module can be directly programmed via ProsTE software. Also it is possible to program the module remotely via AjaxWEB user interface, when a BRAVO GPRS/LAN module is included in the system configuration. The module is certified according to EN50131, GRADE 2, Class II, SP1 (Voice Protocol), SP2 (Digital Protocol).

رمز المنتج : BRAVO PSTN VD
تفاصيل المنتج
المتوفر بالمقاسات :
اطلب الآن

منتجات مماثلة

منتجات مماثلة مقترحة

BRAVO EXT

bravo-ext

BRAVO EXT

Power supply . . . . . . . . . . . . . . . . . AC-DC adapter 5VDC/1A Consumption . . . . . . . . . . . . . . . . . 200mA Backup power supply (battery). . . . . 1 x 3.7V/ 4100mAh, Li-Po type Operation frequency  . . . . . . . . . . . 868-869Mhz (Adaptive Frequency Agility Algorithm) Communication type  . . . . . . . . . . . two-way Built-in siren . . . . . . . . . . . . . . . . . 1; 85dB Operation temperature . . . . . . . . . . -10°C ÷ +40°C  Relative humidity . . . . . . . . . . . . . . 93% @ +30°C Dimensions . . . . . . . . . . . . . . . . . . 220 x 160 x 38 mm Weight . . . . . . . . . . . . . . . . . . . . . 1.223kg Material . . . . . . . . . . . . . . . . . . . . ABS plastic
اطلب الآن عرض التفاصيل
BRAVO PSTN VD

bravo-pstn-vd

BRAVO PSTN VD

BRAVO PSTN VD is a communication module with dialer for voice messaging. The module is designed for operation in BRAVO wireless intruder alarm systems. The module is mounted into BRAVO panel via serial interface connection. The BRAVO PSTN VD module sends messages for events to 2 telephone numbers - to monitoring station (CID or SIA communication protocols) or directly to User (User communication protocol - audio call on Alarm only or Voice dialer). The module can be directly programmed via ProsTE software. Also it is possible to program the module remotely via AjaxWEB user interface, when a BRAVO GPRS/LAN module is included in the system configuration. The module is certified according to EN50131, GRADE 2, Class II, SP1 (Voice Protocol), SP2 (Digital Protocol).
