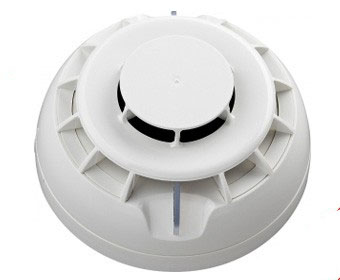

SensoMAG M40
SensoMAG M40

SensoMAG M40

Operating Voltage Range . . . . . . . . . . . . . . . . . . 9 - 30 V DC (Nom. 12/24VDC) Average current consumption in quiescent state . . < 50µA Alarm state current: - with base type B24 and B24D  . . . . . . . . . . 20 mA /  12ё30V - with base type B24RD . . . . . . . . . . . . . . . . 33 mA /  12V; 49mA/24V; 57mA/30V - with base type B12L/U . . . . . . . . . . . . . . . . 18 mA /  9V; 29mA/12V; 32mA/15V Class (in accordance with EN54-5/7)  . . . . . . . . . A1R Output in alarm state at terminal RI . . . . . . . . . . 20mA (max)/ -3.3V (Towards terminals +IN  /+OUT) Degree of protection . . . . . . . . . . . . . . . . . . . . . IP30 Wire Gauge for terminals . . . . . . . . . . . . . . . . . . 0.4mm2    ё 2.0mm2 Operational temperature range . . . . . . . . . . . . . . -10°C ё +60°C Relative humidity resistance . . . . . . . . . . . . . . . . (93 ± 3)% @ 40°C Dimensions (incl. base) . . . . . . . . . . . . . . . . . . . ø102mm, h 48mm Weight (incl. base)  . . . . . . . . . . . . . . . . . . . . . . 170g

رمز المنتج : SensoMAG M40
تفاصيل المنتج
المتوفر بالمقاسات :
اطلب الآن
