RFID Access Controller Control Type: card sensing or access password or card sensing + access password Working Voltage: 10VDC to 16VDC Working Current: <100mA(12VDC) Output: NC/NO and bell terminals Card Type: EM card (ID) or MF Card (IC) User Capacity: 1000 users (4000 users optional) Card Sensing Distance: 1cm to 15cm Working Temperature: 0°to +60° Working Humidity: 20% - 80% NO WG 26, No WG34 Cannot make waterproof Housing: ABS Housing Size (L x W x H): 78 x 22 x 120mm

RFID Access Controller Control Type: card sensing or access password or card sensing + access password Working Voltage: 10VDC to 16VDC Working Current: <100mA(12VDC) Output: NC/NO and bell terminals Card Type: EM card(ID) or MF Card(IC) User Capacity: 1000 users(4000 users optional) Card Sensing Distance: 1cm to 15cm Working Temperature: 0°to +60° Working Humidity: 20% - 80% NO WG 26, No WG34 Can not make waterproof Housing: ABS Housing Size(L x W x H): 78 x 22 x 120mm

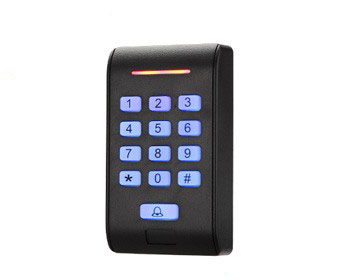

Standalone Touchable Access Controller Control Type: card sensing or access password or card sensing + access password Full programming from keypad Backlight Metal keypad, capacitive touch keys Working Voltage: 12VDC±10% Static Current: <50mA(12VDC) Working Current: <80mA(12VDC) Card Type: EM card(ID) or MF Card(IC) User Capacity: 8000 users Card Sensing Distance: 5cm to 8cm Working Temperature: -20°to +70° Working Humidity: 0% - 95% Adjustable door relay time: 0∽255 second Adjustable alarm time: 0∽3 minute Output current load for locks: ≤3A Output current load for alarm: ≤20A Output current short circuit protection time: <100u second Lock output current short circuit protection Waterproof optional(IP68, OEM project, optional) Built in buzzer Wiegand 26(WG 26)/Wiegand 34(WG 34) input or output port Housing: Strong Zinc Alloy Housing, anti-vandal case Five Color for your option: Golden, Silver, Red Bronze, Green bronze, Champagne Gold, or White bronze Wiring Connection: Electric Lock, Electromagnetic lock, exit button, and external alarm Size(L x W x H): 70 x 21 x 115mm
